In modern drive technology, “precision” is far more than a quality attribute – it is the fundamental prerequisite for efficiency, durability, and reliability. But what does precision actually mean in the day-to-day practice of machining? And why do fractions of a millimeter often determine whether a drive system runs whisper-quietly or fails prematurely?
In this article, we explore the interplay between manufacturing tolerances, machining processes, and the resulting performance of drive components
The Mathematics of Perfection: A Focus on Tolerances
Every component in drive technology—whether shaft, housing, or gear—is subject to manufacturing deviations. The goal of engineering design is to limit these deviations through defined tolerances (based on ISO systems such as IT grades) to ensure optimal functionality.
In high-performance drive systems, a common principle applies: as coarse as possible, as precise as necessary. However, as demands for efficiency and power density increase, the threshold of what is “necessary” continues to shift into the micrometer range.
Why Microns Make the Difference
- Efficiency and friction: Tight tolerances in fits reduce unwanted clearance. An optimized bearing seat prevents shaft misalignment, minimizing friction losses and maximizing energy efficiency.
- Noise, vibration, and harshness (NVH): In industries such as medical technology or robotics, smooth operation is critical. Even minimal deviations in runout accuracy or surface quality can lead to vibrations and increased noise emissions.
- Heat generation and wear: Components that do not interact perfectly due to tolerance deviations create localized load peaks. This results in increased thermal stress, accelerating material fatigue and significantly reducing service life.
High-End Machining: Where Experience Meets Technology

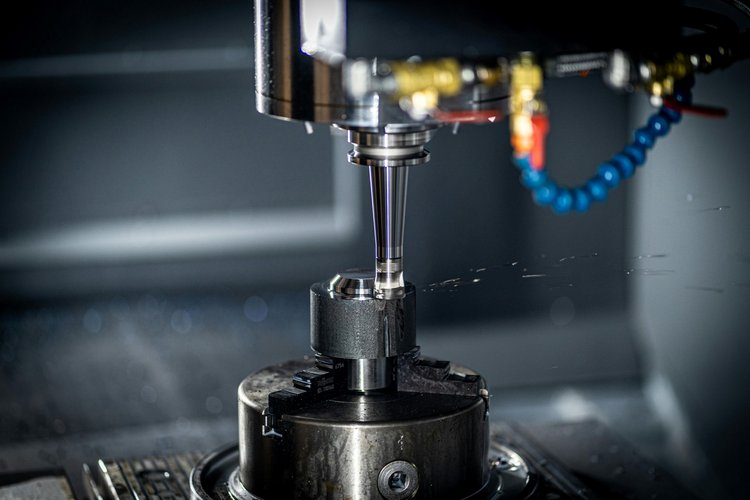

Achieving tolerances in the single-digit micrometer range requires more than advanced CNC technology. Machining processes—turning, milling, grinding—are highly complex and influenced by numerous thermal and mechanical factors.
Key challenges in manufacturing:
- Thermal stability: Machines and workpieces expand with heat. Even a few degrees of temperature variation can push precision fits خارج tolerance limits. High-end production environments are therefore climate-controlled and use sensor-based compensation systems.
- Tool stability and cutting parameters: Selecting the right cutting materials and precisely tuning feed rates and cutting speeds directly affect surface roughness. Ultra-smooth surfaces are often essential for optimal lubrication film adhesion.
- Clamping strategies: Distortion-free clamping is critical. Especially with thin-walled housing components used in lightweight drive systems, the experience of the machinist is key to avoiding deformation during processing.
Quality Assurance as an Integrated Process
Precision cannot be assumed—it must be measured. Comprehensive quality assurance begins during the machining process itself (in-process measurement) and concludes with final inspection using high-precision coordinate measuring machines (CMM).
Only those who understand machine deviations and can compensate for them based on experience are able to consistently deliver top-level quality.
This is where precision born of experience comes full circle: an experienced manufacturer can often detect deviations simply by observing chip formation or listening to the sound of the machine.
Kern Antriebstechnik: Your Experts for Precision and Performance
At Kern Antriebstechnik, precision is not a coincidence—it is the result of decades of machining expertise and a passion for technical detail. We see ourselves not merely as a parts manufacturer, but as your partner for demanding motion solutions.
We understand exactly which parameters to adjust to unlock the full potential of your drive systems—from design optimization for manufacturability to high-precision series production.
When “good enough” isn’t enough, we are the right partner.
